Miniture Diaphram Pump For Your BH Aroma Spray !!!

How to keep those aroma smell fresh for three weeks and more?

If you spray those aroma today, how long will the smell last?

The answer is : may be three to four days or perhaps one week.

So what happen after that?

I guess you need to enter your BH and re apply the aroma. However this is not the best way to do. If you enter your BH too frequent you actually scares those young birds away.

The only way to continue applying without entering the BH is by using a special miniature diaphragm pump that runs for at least one minute every three to four days. You placed those aroma in a 10 -20 liters plastic container and dip the suction pipe attached to the miniture pump. Once in operation the pump will be able to force the aroma out via a few nozzles to make your BH smell fresh (aroma wise).

There are many diaphragm pump in the market and the minimum flow per minute that I came acroosed is 1 liter.

If your set one minute per operating time and twice a week, for three weeks,
you need to spare an aroma container of about 6 liters. I prefer to put more just incase. A 20 liter aroma tank will do good.

I came across a diaphragm pump that fit the above and the cost is not more then rm 180.

Those who wish to assemble the pump complete with the aroma suction pipes and a few nozzle please let me know.

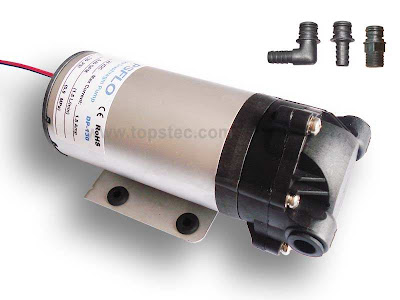

Pump Specification:

1) High pressure up to 130PSi
2) Low energy consumption
3) Intelligent
4) Long use time up to 10 years

The DC minisize diaphragm pump combines the advantages of self-suction pump and chemical pump. By importing some advanced material, the pump has a lot of virtues, such as the self-suction, heat protection, stable performance,compact structure, low voltage, high pressure and so on, it also has good performance as resistance to oxidation, corrosion and strong acid, separated from the motor, the pump body contains no machinery parts, there is no worn-out.

Application:
1) Used in industry and pharmacy
2) Used in chemical industry and agriculture
3) Used in tourist bus and ship
4) Used in automobile cleanness, lawn cleanness and so on
5) Used in high-purity water purifying system

Technical data:
1) Voltage: 12V, 24V
2) Current: 1-7A
3) Power: 10-40 w
4) Max. pressure: 0.9MPa
5) Capacity: 1L/min ~12L/min (according to customers requirement)
6) Max. suction lift: 5m
